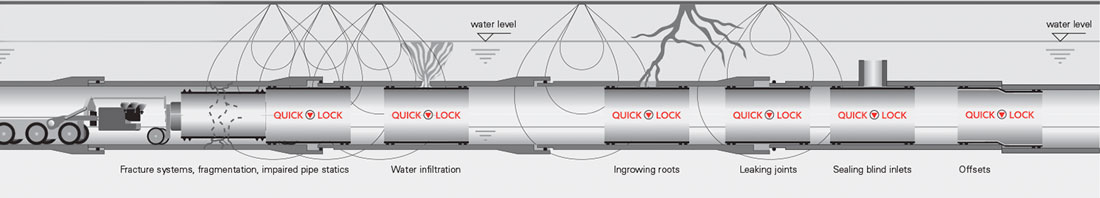

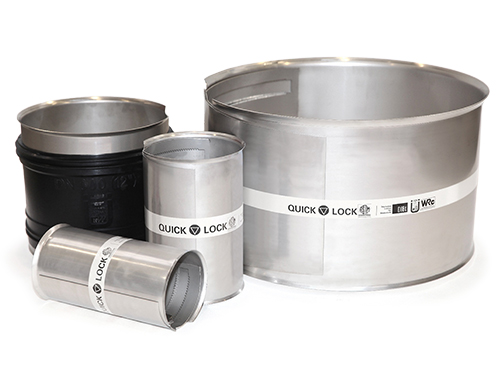

Quick-Lock Point Repair System Trenchless, structural rehab for pipes with localized damage, installs in minutes with no resin. The Quick-Lock mechanical point repair system offers trenchless, standalone repair or pre-lining under high infiltration. Resolve many problems due to damage, seal out infiltrations and restore a pipe’s structural integrity where vulnerable. Quick-Lock sleeves and liner end seals install in minutes with minimal manpower and no resin. Contact unbottleyourself with questions, or to purchase Quick-Lock. Contact Us Sleeves will be available for online purchasing soon. The Quick-Lock point repair system components Rehab sleeves and gaskets Rehab sleeves are made of heavy-gauge 316L stainless-steel sleeve with a patented locking system that once expanded ensures that the sleeve stays permanently in position. After rehabilitation, the sleeve has its own static capability and absorbs the natural tectonic movements of the pipes. The EPDM rubber gasket provides infiltration abatement. Both sleeve and gasket are chemically resistant against sewage, thinned acids, lye, and aromatic and chlorinated hydrocarbons. Multiple sleeves may be installed serially to perform long repairs. Sleeves are available with one, two or no end flares. With a proven service life of 30+ years, Quick-Lock is a cost-effective solution for many problems. Liner End Seals Rehab sleeves are made of heavy-gauge 316L stainless-steel sleeve with a patented locking system that once expanded ensures that the sleeve stays permanently in position. After rehabilitation, the sleeve has its own static capability and absorbs the natural tectonic movements of the pipes. The EPDM rubber gasket provides infiltration abatement. Both sleeve and gasket are chemically resistant against sewage, thinned acids, lye, and aromatic and chlorinated hydrocarbons. Multiple sleeves may be installed serially to perform long repairs. Sleeves are available with one, two or no end flares. With a proven service life of 30+ years, Quick-Lock is a cost-effective solution for many problems. Quick-Lock Packers Propelled by a CCTV crawler and expanded pneumatically with an air-compressor, Quick-Lock’s packers precisely position both repair sleeves and end seals at the target location. Packers attach to the crawler with a connector, we carry styles compatible with most major crawler brands. Quick-Lock Big sleeves and seals are installed manually, but require tools to lock them in position. Contact us for details. Mechanical point repair solutions Quick-Lock point repair sleeves and end seals minimize diameter loss and outlast any other rehab. They are available in diameters ranging 6"–72". They solve: Infiltration Longitudinal cracks Circumferential cracks Holes Separated joints Offset joints Abandoned laterals Root intrusion Support There are so many problems Quick-Lock can resolve. Contact us to learn how it can be a solution to unique challenges you encounter.
